The Crown View
|
||||
The Crown View camera was manufactured by the Folmer Graflex Corporation
from 1938 to 1942. It is a classic folding wooden view camera in the tradition
of the Korona. It has twin rails which provided geared movement to allow focusing

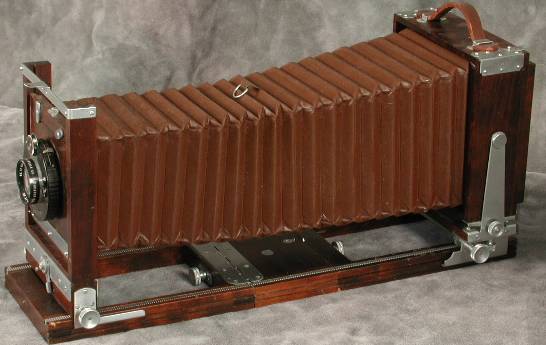

with either standard. Minimum extension is 3 9/16. An extension-rails
attachment was included, and allowed 19 inches of bellows extension. The
Crown View is a pretty camera, with its reddish brown bellows and well-finished
wood. The wood is accented with a choice of satin brass or satin chrome
hardware. Apparently the brass version was more popular; the chrome version
was slightly more expensive ($57.50 vs $63.00 in 1939) and ended production
in 1941, while the brass version continued production into the following
year.
The
movements provided in the Crown View are typical for this type of camera.
It had front rise (1) and fall (13/16). Front shift (1 3/16) and tilt

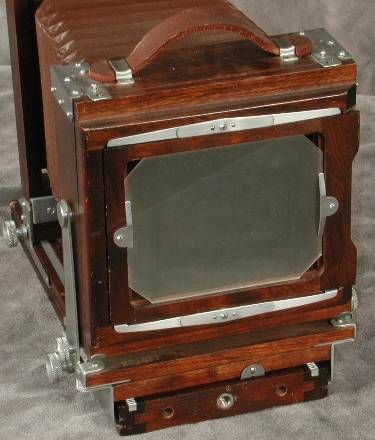

(12 degrees) completed the movements. There were no front swings. The rear
standard had only swing and tilt (both 12 degrees). These meager movements
may make the Crown View camera more of a nice display piece today.
It probably would fill the needs of many modern photographers,
but other cameras in the same used price range provide more movements.
Its better to have it and not need it, you know.

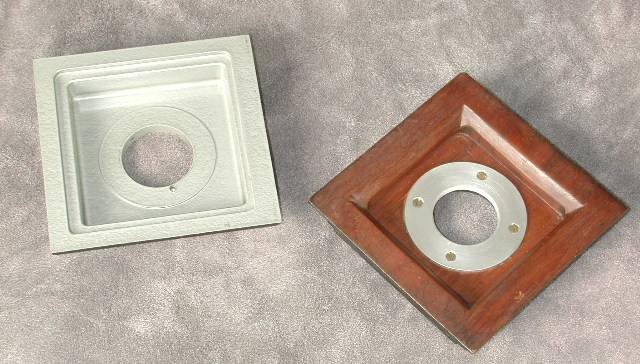

The lens board is the same as the 4"x4" board used by the pre-Pacemaker
Speed Graphic 4x5 cameras (and others, including the Meridian
45B). In fact, the Graphic View and View II later used the same board. A recessed
lens board (5/8) is often seen on the used market, but it apparently was
made for the View and View II cameras. It works perfectly on the Crown,
and provides a little more room when photographing with that Graflex or
Wollensak 3 ½ lens.
|
||||
